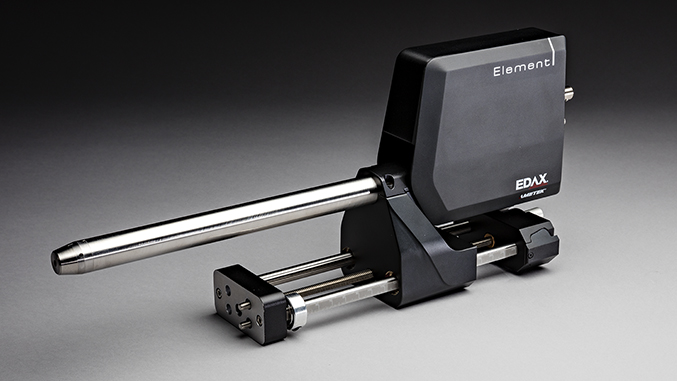

EDAX element

НОвый, привезен с элетронным микроскопом. в 2024 году  Фланец изготовим под микроскоп который у вас


PV6500/00 S S Element EDS System, Manual slide with APEX Standard Software
PVSDD Element Slide Element Silicon Drift Detector with manual slide
• Liquid Nitrogen free with integrated Peltier cooling system
• Typical resolution of 129 eV, measured at Mn Kα, measured according to ISO 15632:2012
• 30 mm2 SDD chip
• Silicon Nitride window with honeycomb grid: increased transmissivity; increased light
element sensitivity; plasma cleaner compatible
• Capable of handling throughput of >300kcps
• Multiple amp times available
• Vacuum encapsulated module: better low energy sensitivity, lower power draw
• 10 eV/channel resolution for spectral collection
• Manual Slide
• Single mains plug with universal input voltage
The detector conforms to ISO 15632:2012 specifying performance at productive count rates
PV8005/00/SG E Beam Control and Data Acquisition Package - Scan Generator with Embedded DPP for
Element
Beam control and data acquisition package provides digital control of the electron
microscope beam and acquisition video signal with 16-bit resolution.
• Advanced signal acquisition electronics for SDD drive high throughput and stable resolution
performance
• User-selectable processing times allow collection tailored to application-specific needs.
Faster processing times drive higher throughput. Longer times improve resolution
performance.
• 5-level fast discriminator settings offer better pile-up rejection and reduce sum peaks
PV6303/00 APEX Standard Software
APEX™ Standard Software
An intuitive software package for fast and accurate elemental analysis with an easy-to-use
user interface for EDS data collection, analysis, mapping, and reporting. The APEX™ Software
Suite streamlines analysis and facilitates workflow for material characterization.
· Analysis
· Data Management and reporting
